Chapter 9 Low Level Protocol
Features:
- 8-bit word size
- 一条 link 支持最高 4 条交替的 virtual channels
- frame start, frame end, line start, line end 有特殊的 packet
- type, pixel depth and format 有描述符
- 16-bit checksum
9.1 Low Level Protocol Packet Format
有short 和 long packet.
都以 SoT(Start of Transmission) 开始和 EoT(End of Transmission) 结束.
9.1.1 Low Level Protocol Long Packet Format
DI: 定义了 virtual channel 和 data type, 长包的 data type 0x10~0x37.
9.1.2 Low Level Protocol Short Packet Format
短包Data type 0x0~0xf.
9.2 Data Identifier(DI)
高 2bit 表示 virtual channel 号, 低 6bit 表示 data type.

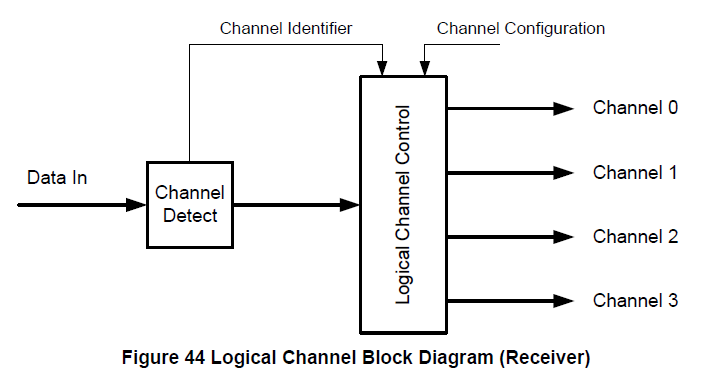

9.3 Virtual Channel Identifier
最多支持 4 条 virtual channel.
9.4 Data Type(DT)
所有的data type类型:
9.5 Packet Header Error Correction Code
skip
9.6 Checksum Generation
skip
9.7 Packet Spacing
长短包之间必须要有LPS(Low Power State)的进出.
9.8 Synchronization Short Packet Data Type Codes
短包的data type有: frame start/end, line start/end 短包.
9.8.1 Frame Synchronization Packets
9.8.2 Line Synchronization Packets
9.9 Generic Short Packet Data Type Codes
短包 data type 0x8~0xf 是 generic short packet.
mipi csi 协议层对 generic short packet 的含义没有定义, 交给 receiver 来自己处理不同的 data types.
9.10 Packet Spacing Examples
展示了 line blanking 和 frame blanking 的情况.
9.11 Packet Data Payload Size Rules
9.12 Frame Format Examples
Chapter 10 Color Spaces
Chapter 11 Data Formats
11.4 RAW Image Data
有 raw6/7/8/10/12/14.
